Bariatric vs Standard Hospital Beds: Key Differences Explained

When families ask us about equipment needs, the conversation often circles back to one specific decision.

Most people assume a bed is just a bed.

We have found that the choice between a standard and a bariatric model actually determines the safety of the entire hospital bed for home care setup.

It is not just about the weight rating on the sticker.

This decision impacts how easily a caregiver can work and how safe the patient feels when turning over at night.

We want to break down the technical differences and the practical realities that brochures usually leave out.

The Core Differences at a Glance

A side-by-side comparison helps clarify why these two options function so differently. The specifications below reflect current industry standards for US home care equipment in 2026.

Specification	Standard Hospital Bed	Bariatric Hospital Bed
Safe Working Load	450 lbs (Includes mattress + accessories)	600-1,000+ lbs
Patient Weight Limit	350 lbs	500-900+ lbs
Mattress Width	36 inches (Twin equivalent)	42, 48, or 54 inches
Motor Force	~4,000 Newtons	~6,000+ Newtons
Frame Steel	16-gauge tubing	14-gauge or angle iron
Deck Style	Spring or Grid Deck	Solid Pan or Heavy Grid
Avg. Rental Cost	$200-$350/mo	$350-$600/mo

Weight Capacity: The Primary Difference

The most critical distinction involves understanding two specific terms: Patient Weight and Safe Working Load (SWL).

Standard hospital beds are generally engineered with a Safe Working Load of 450 pounds.

This number can be misleading.

The SWL accounts for the patient plus the mattress, side rails, pumps, and bedding.

Consequently, the actual recommended patient weight limit for a standard bed is typically capped at 350 pounds.

Bariatric beds utilize heavy-duty manufacturing to increase that SWL to a minimum of 600 pounds, with some models supporting over 1,000 pounds.

Why The Margin Matters

If a patient weighs 320 pounds, they are technically within the limits of a standard bed.

However, we often recommend stepping up to a bariatric model in this scenario.

Operating a motor near its maximum capacity constantly causes premature wear and slower adjustments.

A bariatric motor lifting 320 pounds is operating at 50% capacity, ensuring smoother movement and longer reliability.

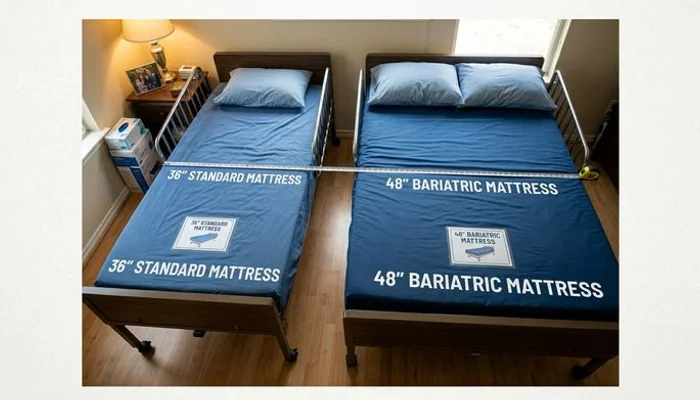

Width: Comfort and Safety

The width difference changes the daily experience for the patient more than any other feature.

A standard 36-inch mattress is narrower than a standard Twin bed (which is 38 inches).

For a patient with a broader frame, this narrow surface creates legitimate risks:

• Fall Risk: Turning over requires inches of clearance that a 36-inch bed cannot provide for larger individuals.
• Caregiver Leverage: Nurses and family members need space to roll a patient to change linens.
• Pressure Injuries: A confined space forces the patient to stay in one position, increasing the risk of bedsores.

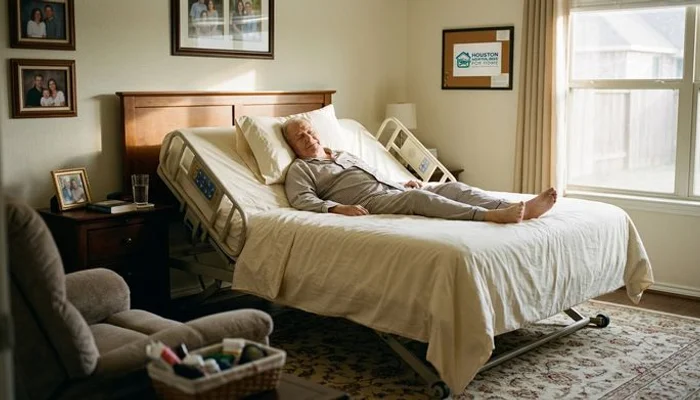

Most bariatric frames offer a 42-inch or 48-inch width.

That extra 6 to 12 inches allows a patient to rest their arms by their sides without hanging off the mattress edges.

Frame Construction

Standard hospital beds use steel tubing that is perfectly adequate for general use.

Bariatric beds use thicker tubing—often 14-gauge versus the standard 16-gauge—with reinforced welds at critical stress points.

You can feel this difference immediately when shaking the headboard.

A standard bed will have some natural flex.

Our bariatric inventory feels rigid and planted.

This rigidity is vital for patient confidence.

When a larger patient relies on the bed for support during a transfer, any wobbling or shifting can cause panic or a fall.

Motor Differences

Lifting 400+ pounds of patient weight plus a heavy steel platform requires significant torque.

Standard motors (often rated around 4,000 Newtons of force) will whine or stall if overloaded.

Bariatric bed motors are distinct in three ways:

1. Higher Torque: They typically generate 6,000+ Newtons of force to lift heavy loads without hesitation.
2. Steel Gears: Many heavy-duty actuators replace plastic internal gears with metal components to prevent stripping.
3. Duty Cycle: They are designed to dissipate heat more efficiently, allowing for frequent adjustments without thermal shutdown.

On a standard bed, the motors adjust the bed easily because the load is lighter.

Bariatric motors do the same job with a heavier load, and a quality bariatric bed should feel just as smooth.

Mattress Considerations

You cannot use a standard hospital mattress on a bariatric bed.

Safety regulations regarding Entrapment Zones make this dangerous.

Using a 36-inch mattress on a 42-inch frame creates large gaps on the sides where a patient can become trapped.

Bariatric mattresses are specifically designed with:

• Higher-Density Foam: We look for densities over 2.0 lbs/cu ft to prevent the patient from “bottoming out” against the metal deck.
• Greater Thickness: Most are 7-10 inches thick compared to the standard 6 inches.
• Firm Side Perimeters: Stiff foam borders help stabilize the patient when sitting on the edge of the bed.

For patients at high risk of pressure injuries, a bariatric alternating pressure mattress provides active pressure redistribution.

This technology uses air cells that inflate and deflate to mimic patient movement.

Side Rails

Bariatric side rails are not just wider; they mount differently.

Standard rails often clamp onto the movable spring deck.

Bariatric rails usually bolt directly to the main steel frame or use reinforced cross-braces.

This mounting style allows the rail to support significant weight.

Patients often use these rails to pull themselves up or reposition their hips.

A standard rail might bend under that lateral force, but a bariatric rail provides a secure anchor point.

Room Space Requirements

This is a practical consideration that families sometimes overlook.

A standard hospital bed is roughly 88 inches long and 39 inches wide.

A bariatric bed with a 48-inch mattress will be roughly 54 inches wide overall once you account for the side rails and motor mounts.

Before ordering, you must verify the “path of travel” in your home:

1. Doorway Width: Most residential bedroom doors are 30 or 32 inches wide. A bariatric bed often requires the door to be taken off the hinges for delivery.
2. Turning Radius: Our delivery technicians need room to pivot the bed frame components around hallway corners.
3. Caregiver Zone: You need at least 2 feet of clear walking space on both sides of the bed for safe caregiving.

Our delivery team can discuss room layout during the scheduling call and will work with your space to optimize placement.

When Do You Actually Need a Bariatric Bed?

We use a simple checklist to help families make the right call.

Definitely Need Bariatric

• Weight: Patient exceeds 350 pounds.
• Body Shape: Patient carries weight in the hips or shoulders, making a 36-inch width too narrow.
• Safety: The patient requires the stability of frame-mounted rails for repositioning.

Consider Bariatric

• Borderline Weight: Patient weighs 300-350 pounds.
• Height: Taller patients (over 6’2”) often benefit from the larger sleep surface and longer deck extenders found on bariatric models.
• Duration: If the bed is for long-term use (6+ months), the heavy-duty components will outlast a standard model.

Standard is Sufficient

• Weight: Patient weighs under 300 pounds.
• Mobility: Patient can easily center themselves on a twin-sized mattress.
• Short-term: Recovery from surgery where the bed is needed for only a few weeks.

Cost Difference Explained

Bariatric beds cost more because the raw materials are heavier and the engineering is more complex.

The linear actuators (motors) alone can cost three times as much as standard versions due to the high-torque requirement.

In Houston, the monthly rental difference is typically $150-$250 more per month for a bariatric bed compared to a standard full-electric model.

Skimping here usually backfires.

Placing a 400-pound patient on a standard bed will burn out the motor and void the rental warranty, leading to replacement fees that exceed the cost of the proper rental.

For a broader cost perspective, see our Houston hospital bed rental pricing guide.
